Robust seal design - suitable for demanding light hydrocarbon applications

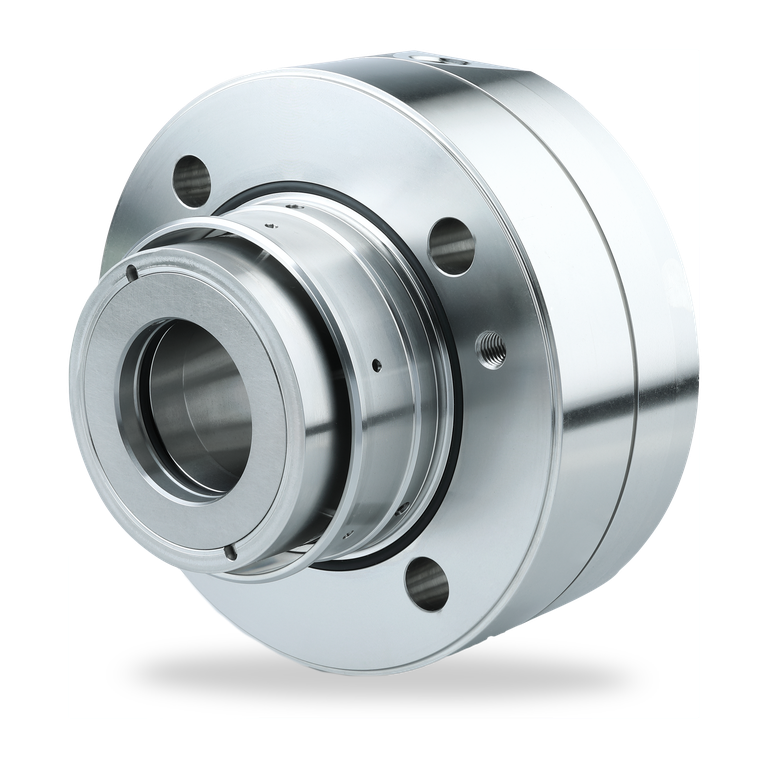

Compact cartridge seal for small seal chambers

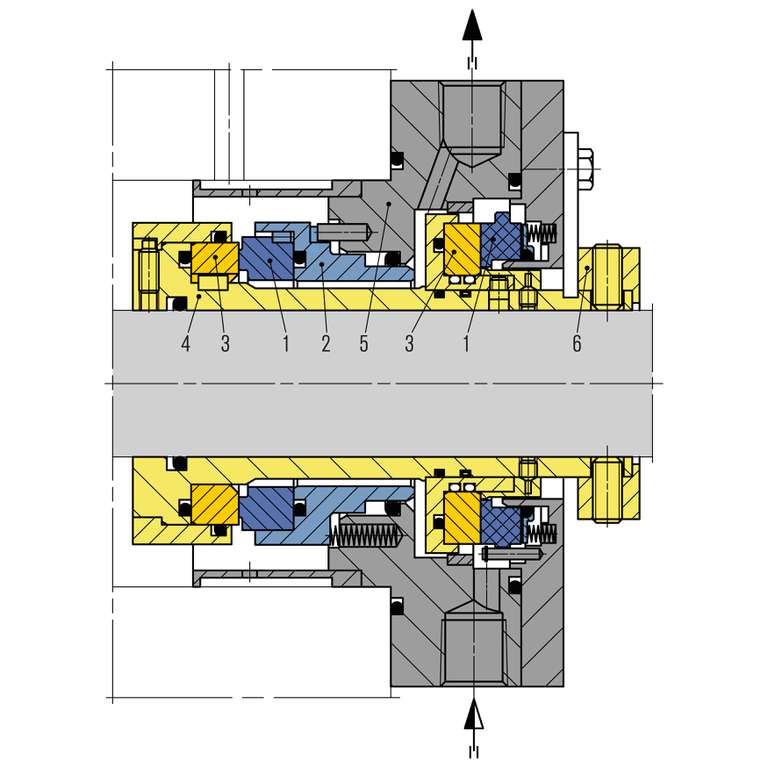

Single unpressurized seal with a high pressure-non contacting containment seal
Stationary spring loaded unit
Balanced primary seal faces in materials with high thermal conductivity and strength
Multi-point injection of the flush fluid optional
Seal faces can be equipped with lubrication enhancing grooves and/or DiamondFace technology
Advantages
Operational Excellence
High Performance seal for single and multi fluid type pipeline services with variable pressures and speeds
Low amount of heat generation, hence minimal temperature rise in the seal faces

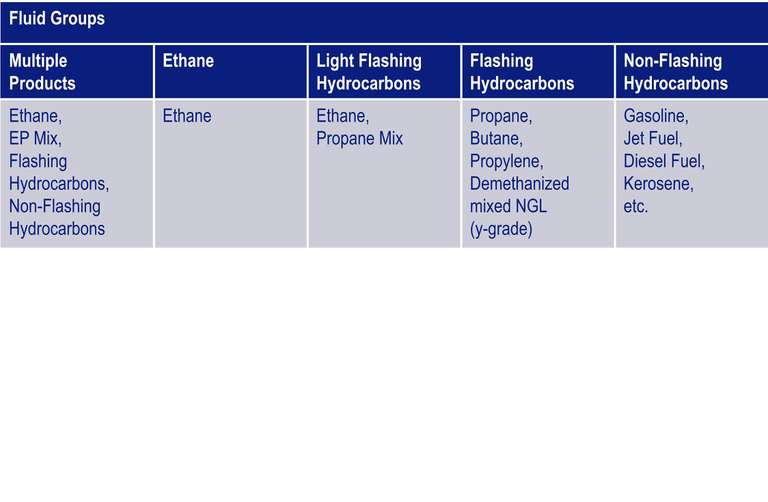

Suitable for flashing and non-flashing light hydrocarbons, even with low vapor pressure margins
Seal faces have soft torque transmission
Seal faces are shrouded in steel collars so that they cannot break apart in pieces in an emergency case
Resistant to alignment issues between the pump case and shaft because of stationary springs
Containment seal is rated for full dynamic pressure of primary seal, i.e. high degree of safety and environmental protection
Seal face materials are resistant to solids in the pumped fluid
Technical Excellence
Simple installation due to pre-assembled cartridge
Seal faces are designed with FEA & CFD and qualified & tested in the lab
Can be fitted in older pumps with small seal chambers or stuffing boxes
High degree of standardization ensures fast deliveries and smart part inventories
Sustainability Excellence
Zero emission seal design for sustainable environmental protection in combination with plan 75 or plan 76
Minimized friction and energy consumption
Operating range
Shaft diameter:
d1* = 50 ... 150 mm (1.97" ... 5.91")
Pressure: p1 = 100 bar (1,450 PSI),
Static: up to 150 bar (2,175 PSI),
Dynamic: up to 100 bar (1,450 PSI)
Temperature: t = -20 ... +100 °C (-4 ... 212 °F)
Sliding velocity: vg = 50 m/s (164 ft/s)
Axial movement: ±1 mm
