Statotherm HT 9560

Features

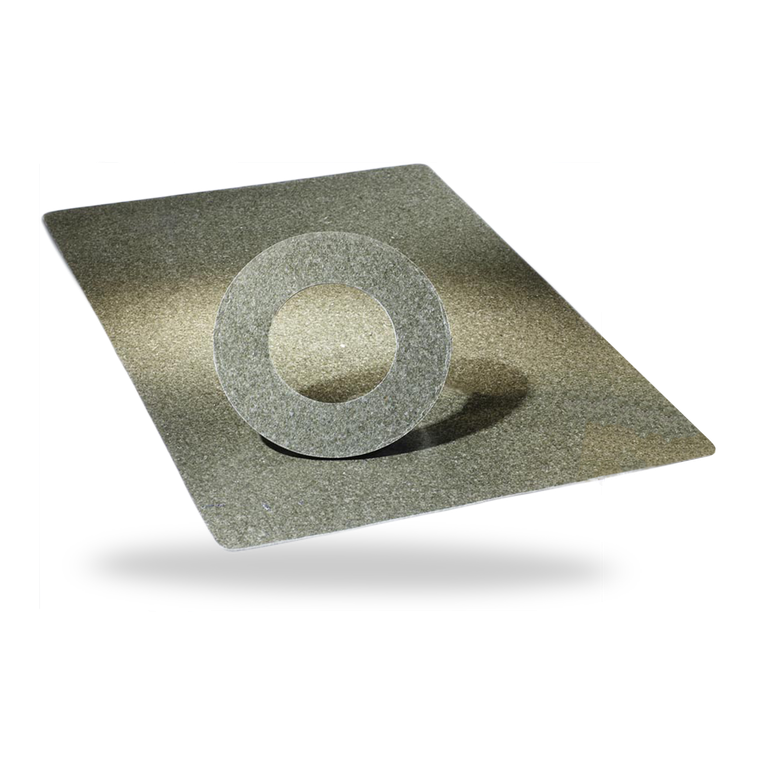

Statotherm HT 9560 is a gasket made from particularly heat-resistant natural mica. The outstanding thermoactive sealing behavior (from around 600 °C) is achieved through a specially developed treatment. The materialʼs expansion ratio actively counteracts any loss of surface pressure, which in turn guarantees the tightness and stability that the gasket needs for sealing even extreme conditions.

Advantages

  • Extreme temperature stability
  • Active expansion behavior when exposed to high temperatures
  • Good chemical resistance

Operating range

Pressure: p = 5 bar
Temperature
  • Continuous operation:
    tmax = + 950 °C
  • Inert environment:
    tmax>1,200 °C
Recommended surface roughness:
RZ = 40 … 60 μm

Guaranteed chemical resistance even in many gaseous media.

Sealing parameters
Thermal conductivity coefficient of sealant at 400 °C: λ = 0,35 W/mK Compressive strength for sealant to DIN 52913 (16 hours at 300 °C): 35 ... 40 MPa

Materials

  • Soft gasket made from mica compound
  • Tanged insert from 1.4828 or 1.4401

Variants

9560/2P (with tanged metal reinforcement (1.4828)
9560/2RIG (with tanged metal reinforcement (1.4828) and eyeletting (1.4828)
9560/3P (with tanged metal reinforcement (1.4401)
9560/3RIG ((with tanged metal reinforcement (1.4401) and eyeletting (1.4571)

Notes

The gasket is normally installed between flat sealing surfaces. Please note that the seal thickness is set during installation as a result of the bolt-tightening forces acting on the flange. The standard thickness of 1.3 mm when new settles to around 1.05 mm with surface pressure of 15 MPa at room temperature. Once this adaption has taken place, there is no further significant settling or flow.

Forms of supply

  • Unreinforced sheets:
    1,000 x 1,016 mm
    0.4 mm thick
    1,500 x 1,000 mm
    0.7 / 1.0 mm thick
  • Sheets with tanged insert
    in 1.4828:
    1,500 x 1,000 mm
    1.3 / 1.7 mm thick
  • Sheets with tanged insert
    in 1.4401:1,200 x 1,000 mm
    1.3 / 1.7 / 2.0 mm thick
  • Rings and molded parts:
    Standard dimensions
    as per DIN EN 1514-1 or
    ASME B16.21

    • Gaskets and rings
    9560/P: 1,000 x 1,016 mm in thickness 0.4 mm
    9560/P: 1,500 x 1,000 mm in thickness 0.7 and 1.0 mm
    9560/2P: 1,000 x 500 mm in thickness 1,3 mm
    9560/3P: 1,000 x 1,200 mm in thickness 1.3 ; 1.7 and 2.0 mm

Similar products

Contact

Inquire about individual solutions

We develop and produce customer-specific special and individual solutions for every application.

Inquire now Discover reference projects
Back to the overview

Technical Datasheet HT Statotherm TDB 9560

PDF download - 56.6 KB
